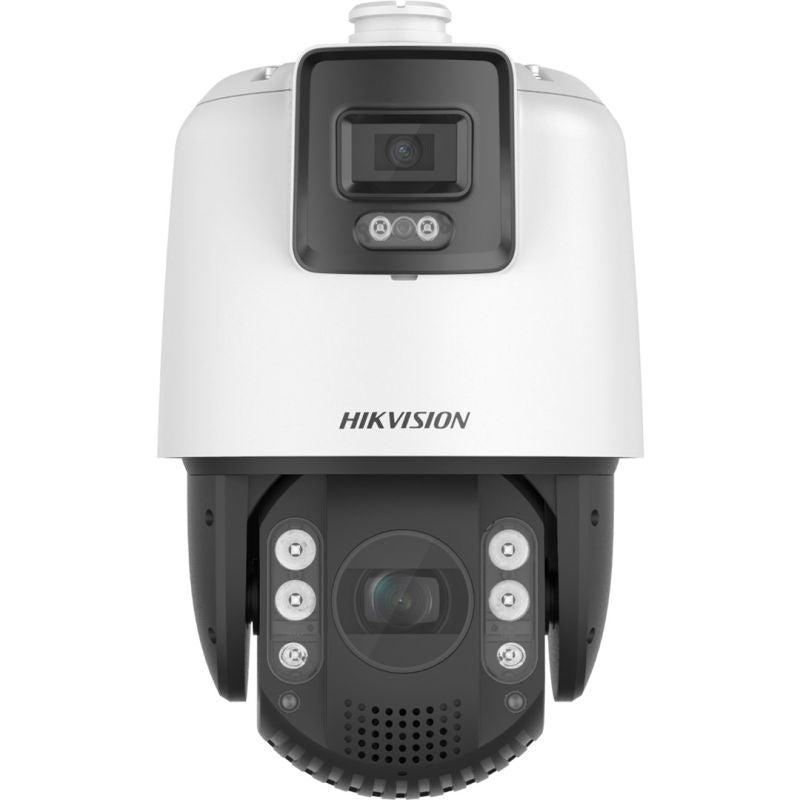

Hikvision DS- (14F1)(P3) Industrial Camera Dome Security IP Camera Outdoor 2560 x 1440 px Ceiling/Pole

Raktáron

SKU: 8108181

Barcode: 6931847157937

Hikvision DS- (14F1)(P3) Industrial Camera Dome Security IP Camera Outdoor 2560 x 1440 px Ceiling/Pole

(0)

1 066 990 Ft

Tax included.

Shipping calculated at checkout.

Méret: One Size

Mérettáblázat

One Size

Még több Egyéb

További 4F cuccok

Technical details
- Audio input: 1
Design
- Weather-resistant product: Yes
- Mounting type: Ceiling/Pole
- Layout: Dome
- Product color: White
- IK code: IK10
- IP protection class: IP66
Power
- Power consumption (max): 42 W
- AC input voltage: 24V
- Power supply type: AC, PoE
Weight and dimensions
- Product height: 382.1 mm
- Product weight: 6 kg
- Diameter: 22 cm
Security
- Mirror: Yes
- Privacy Protection: Yes
- Alarm input channels: 2
- Intelligent Video Surveillance (IVS) Features: Face Detection
- Digital Watermark: Yes
- Alarm output channels: 1
- IP Filtering: Yes
- Password protection: Yes
- Password Protection Type: User
- HTTS Inscription: Yes
- Automatic Network Replenishment (ANR): Yes
Management features
- Behavior Analysis: Intrusion Detection, Line Crossing Detection, Region Entry Detection, Region Exit Detection
- Website management: Yes
- Reset button: Yes
Working conditions
- Relative humidity range: 0 - 90%
- Temperature range (operation): -30 - 65 °C
Network
- Number of users: 32 users
- Client interoperability: iVMS-4200, Hik-Connect
- User access level: Administrator, Operator, User
- Live View: Yes
- Number of simultaneous live view channels: 20 channels
- Wi-Fi: No
- Quality of Service (QoS) Support: Yes
- Wired LAN: Yes
- Ethernet interface type: Fast Ethernet
- Bluetooth: No
Efficiency
- Day/Night Mode: Yes
- Intended use: Outdoor
- Dynamic range: 120 dB
- Alarm I/O: Yes
- Pre-programmed points: Yes
- PTZ: Yes
- Connection method: Wired
- Wide Dynamic Range (WDR): Yes
- PTZ modes: 4 samples
- Model: IP Security Camera
Package contents
- Number of cameras: 1
Audio
- Signal-to-noise ratio: 52 dB
- Supported audio formats
  - MP2L2
  - G.726
  - G.722.1
  - PCM
  - G.711
- Bit rate range: 32 - 192 Kbit/s
- Sampling rate: 8 - 48 kHz
Data carrier
- Maximum memory card size: 256 GB
- Built-in HDD: No
- Supported memory cards
  - MicroSDXC
  - MicroSD
  - MicroSDHC
- Integrated card reader: Yes
Ports and interfaces
- Number of Ethernet LAN ports (RJ-45): 1
Camera
- Shutter speed: 1 - 1/30000 s
- Sliding speed: 160 °/s
- Camera Tilt Control: Yes
- Predefined roll speed: 200 °/s
- Camera Pan Control: Yes
- Initial speed: 240 °/s
- Number of presets: 300
- Vertical lens viewing angle: 42.4°
- Lens viewing angle, horizontal: 79°
- Tilt angle range: -15 - 90°
- Tilt speed: 120 °/s
- Min. Illumination: 0 lx
- White balance
  - Fluorescent
  - ATW
  - Internal
  - External
  - Automatic
  - Sodium lamp
  - MWB
- Swivel range: 0 - 360°
Other functions
- Audio output: 1
- Supported browsers: IE 10+, Chrome 57+, Firefox 52+, Safari 12+
Photosensitive matrix
- Progressive Scan: Yes
- Number of sensors: 2
- CCD sensor size: 25.4 / 1.8 mm (1 / 1.8")
- Image sensor type: CMOS
Night mode
- Night mode: Yes
- Night Vision Distance: 200 m
Video
- Compression formats
  - H.265
  - H.264
- Frame rate: 30 fps
- Data rate control: Constant Bit Rate (CBR)/Variable Bit Rate (VBR)
- Quality regulation
  - Saturation
  - Sharpness
  - Contrast
  - Brightness
- Video transmission: Yes
- Noise reduction: Yes
- Regional Area of Interest (ROI) Coding: Yes
- Noise reduction technology: 3D noise reduction
- Privacy Mask: Yes
- Supported graphics resolutions
  - 1920 x 1080 (HD 1080)
  - 1280 x 720 (HD 720)
  - 352 x 240
  - 704 x 576
  - 2560 x 1440
  - 704 x 480
  - 352 x 288
  - 640 x 480 (VGA)
  - 1280 x 960
- Highlight Compensation (HLC): Yes
- Total megapixels: 4 MP
- Maximum resolution: 2560 x 1440 px
- Data flow speed: 32 Kbps - 16 Mbps
- Backlight compensation: Yes
Lens system
- Minimum aperture: 1
- Detection distance (tele): 3060 m
- Number of lenses: 2
- Focus: Motorized/Manual
- Distance measurement (tele): 306 m
- Distance Recognition (Tele): 612 m
- Optical zoom: 32x
- Observing distance (tele): 1214.3 m
- Maximum aperture: 1.5
- Fixed focal length: 4 mm
- Focal length: 5.9 - 188.8 mm
- Auto focus: Yes
- Digital zoom: 16x
- Zoom capability: Yes
